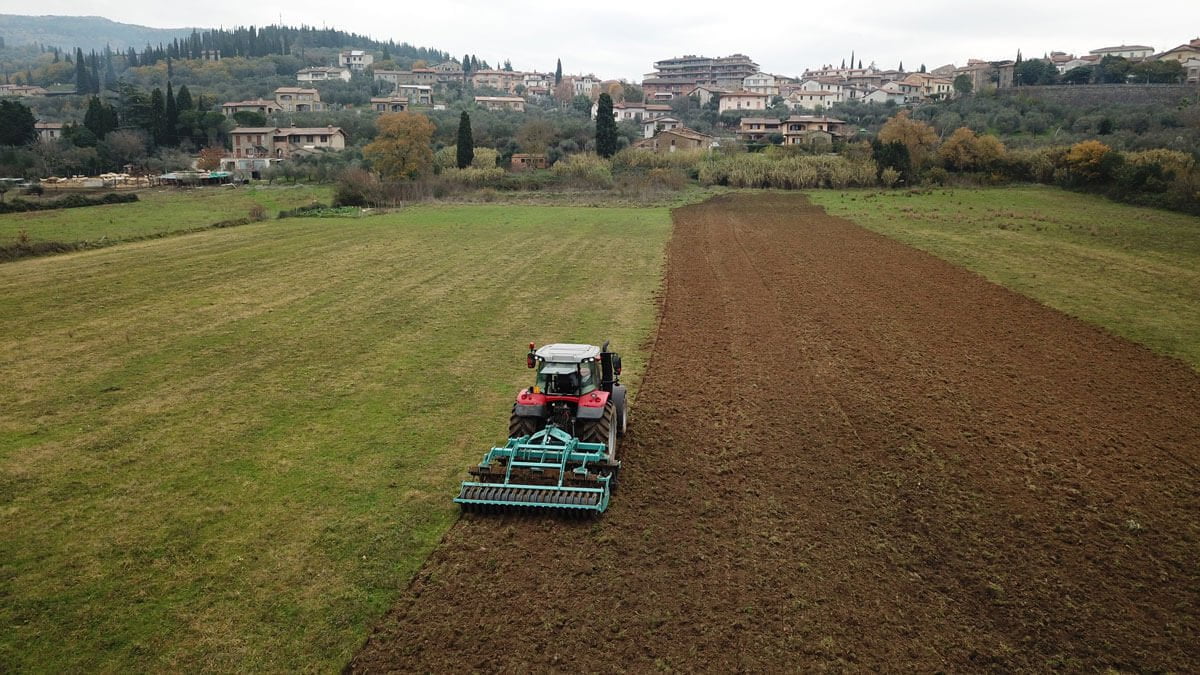

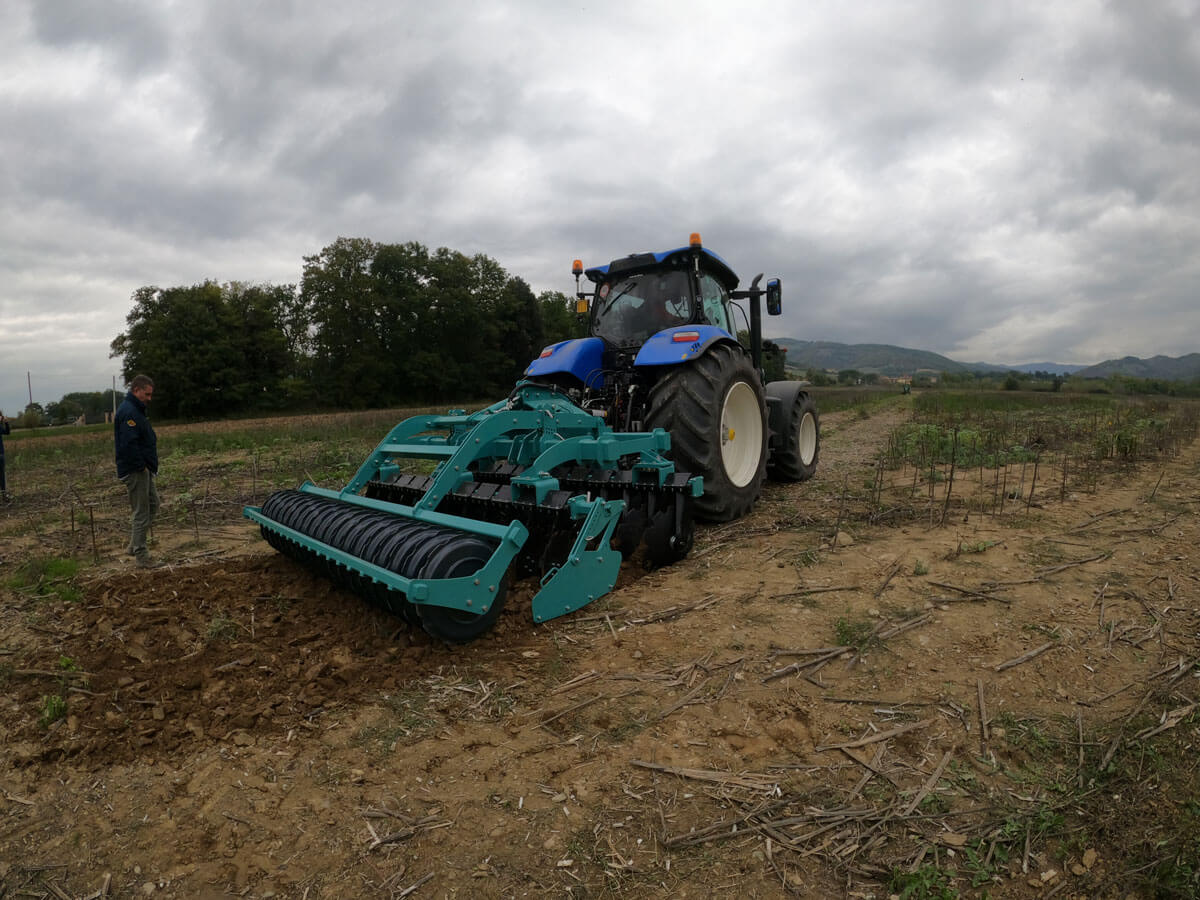

Nardi Orbis Short Disc cultivator

Details

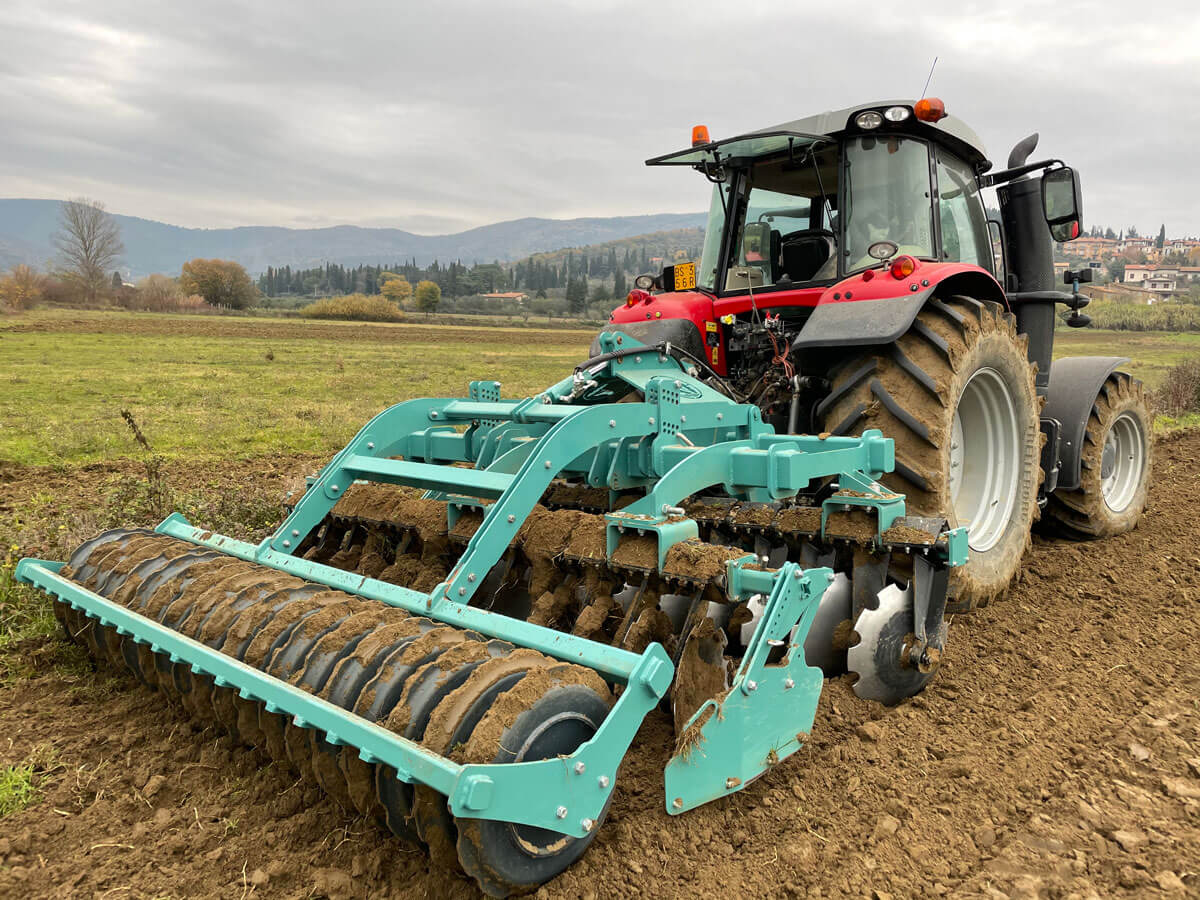

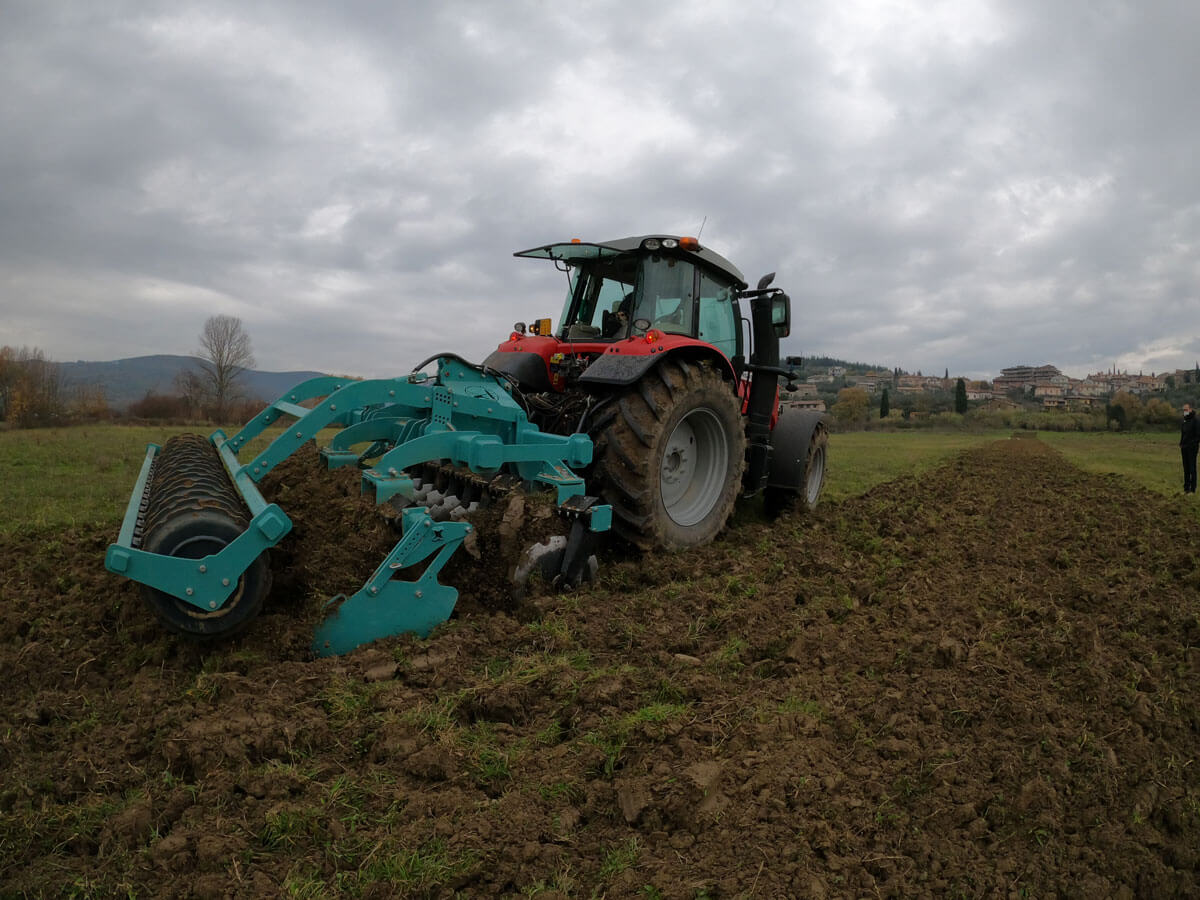

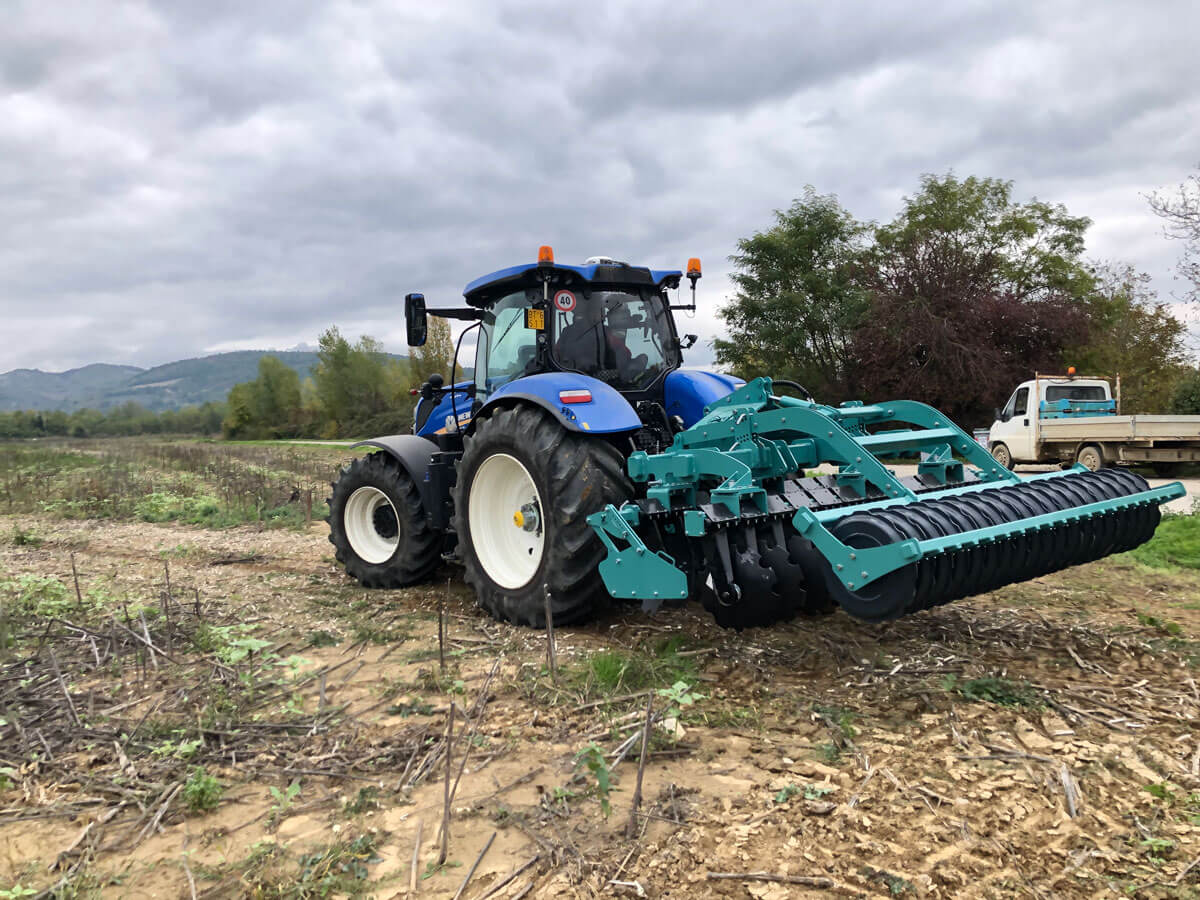

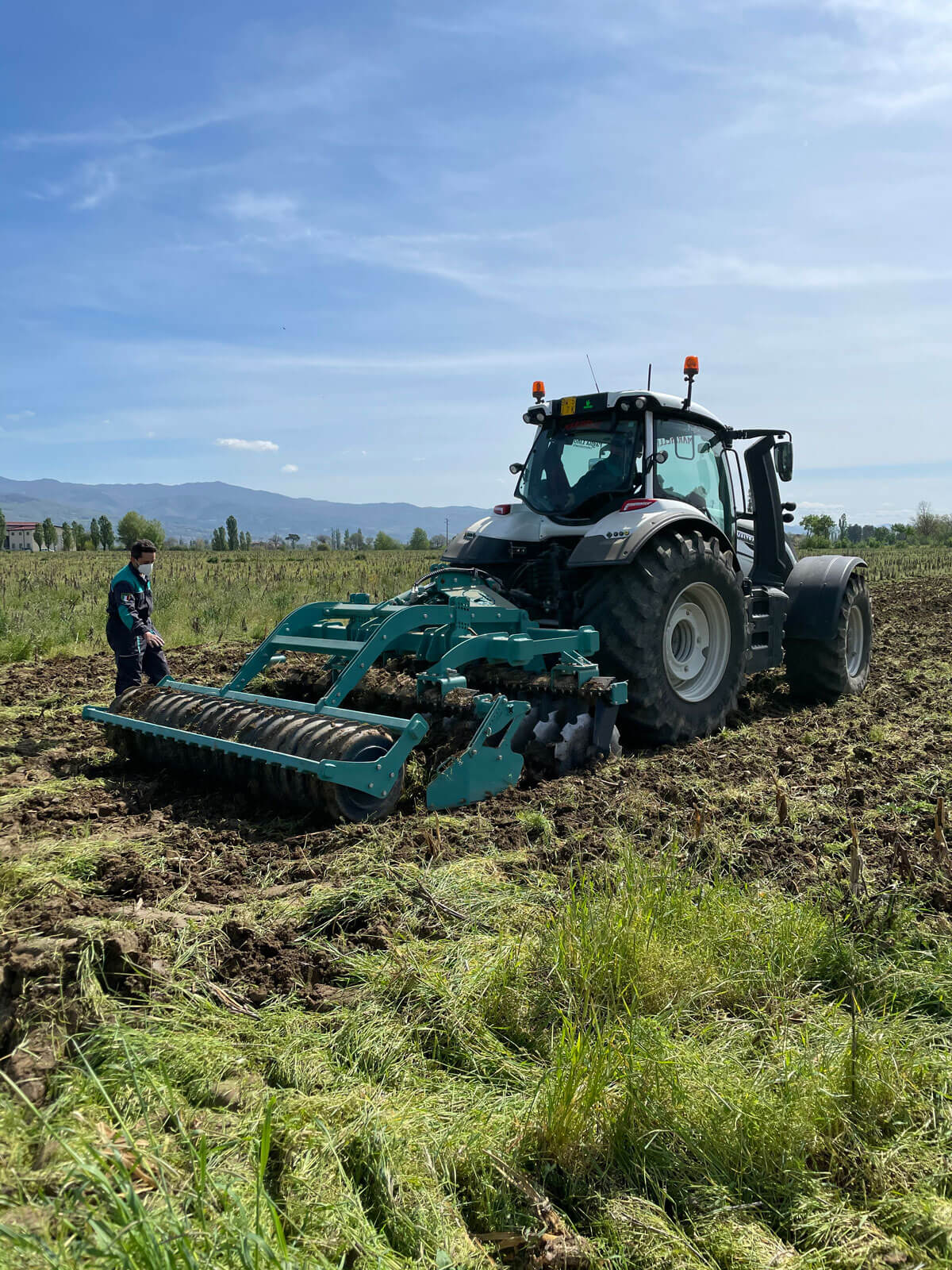

The Nardi Orbis is a short disc cultivator available in working widths of between 2 and 5.5 metres. It is suitable for use on tractors of up to 300hp dependent on model.

Full Details

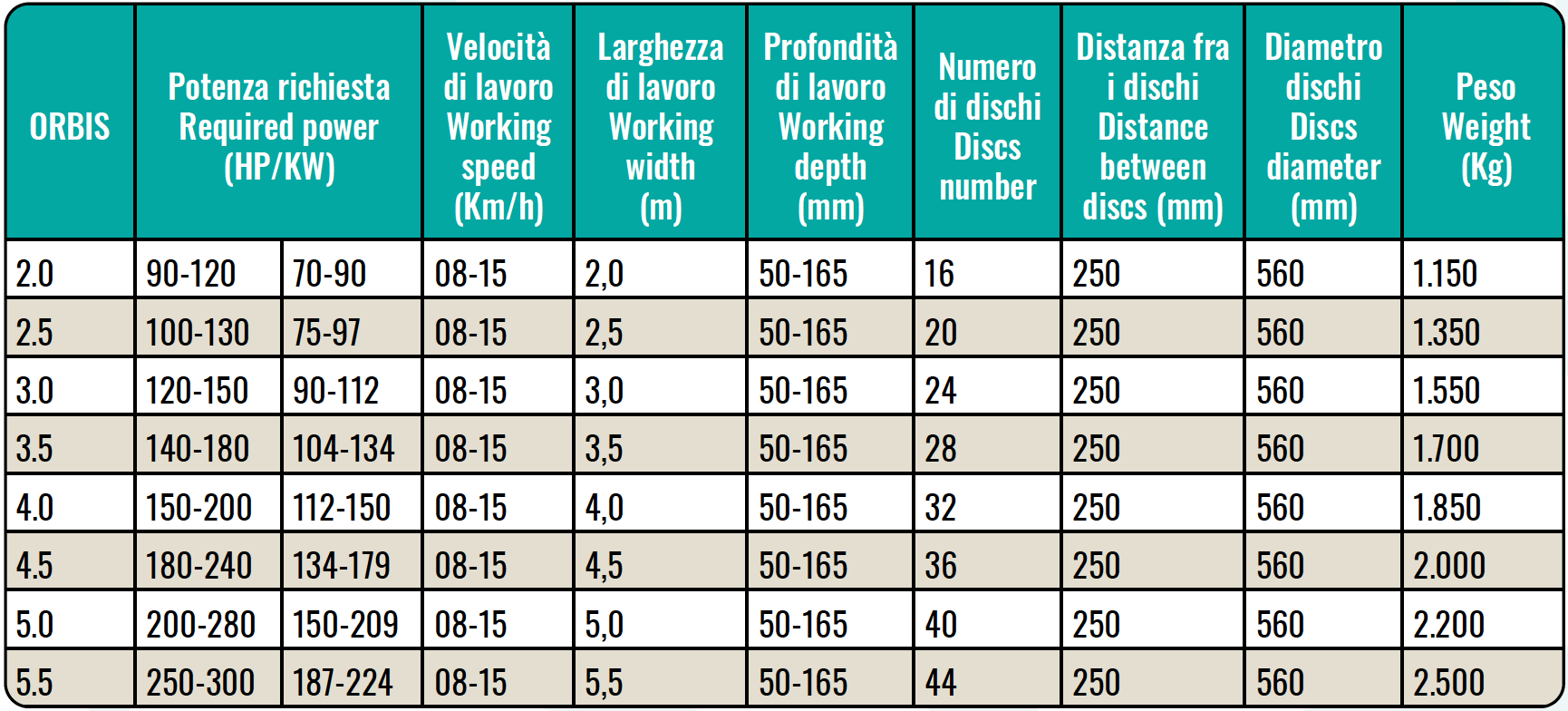

The Nardi Orbis Short Disc Cultivator is available in eight different working widths:

  • 2.0 metres
  • 2.5 metres
  • 3.0 metres
  • 3.5 metres
  • 4.0 metres
  • 4.5 metres
  • 5.0 metres
  • 5.5 metres

All models benefit from 560mm diameter cutaway discs as standard. There is also an option to have either 510mm or 610mm diameter discs fitted in their place if required. All disc units are individually mounted on rubber shock absorbers. In addition, each disc benefits from twin waterproof bearings to ensure a long service life. All models feature a 250mm disc spacing.

Hydraulic or mechanical depth control options are in place for all models within the range. A semi mounting kit is also available for those who do not wish to have the machine mounted on the tractor lift arms.

A cage roller is fitted as standard across the range with a selection of other roller styles also being optionally available.

Working depths of 50-165mm are possible. In addition working speeds of up to 15kph are also achievable in ideal conditions.

To download a copy of the Nardi Orbis Short Disc Cultivator brochure, please click here.

NARDI are exclusively distributed by Agri Market Insight and Access Ltd in the UK and Ireland. For more information on their full range of products, please feel free to contact our helpful team by clicking here.
